Machined metal parts, laminated shims and controlled elastomer layers.
Engineer-led rotor hub elastomer development
Helicopter Rotor Hub Spherical Laminated Elastomeric Bearing Development
For this type of laminated metal-elastomer component, the real development task is to turn motion, load and stiffness requirements into a manufacturable structure whose metal parts, elastomer layers, bonding interfaces and test records remain connected throughout the project.
Reviewed September 2, 2026 · Engineering case · Public disclosure version
Public disclosure boundary: This page describes the development method and quality-control logic. It does not publish the customer, aircraft model, part number, drawing dimensions, compound formula, controlled process parameters or acceptance limits.
Direct answer
What is a helicopter rotor hub spherical laminated elastomeric bearing?
A helicopter rotor hub spherical laminated elastomeric bearing is a bonded metal-elastomer component made from alternating elastomer layers and metal reinforcing shims between machined metal interfaces. In a project-specific design, the laminated stack is developed to carry defined loads and permit controlled angular or shear deformation while stiffness, bonding, dimensions and traceability are verified against approved technical documents.

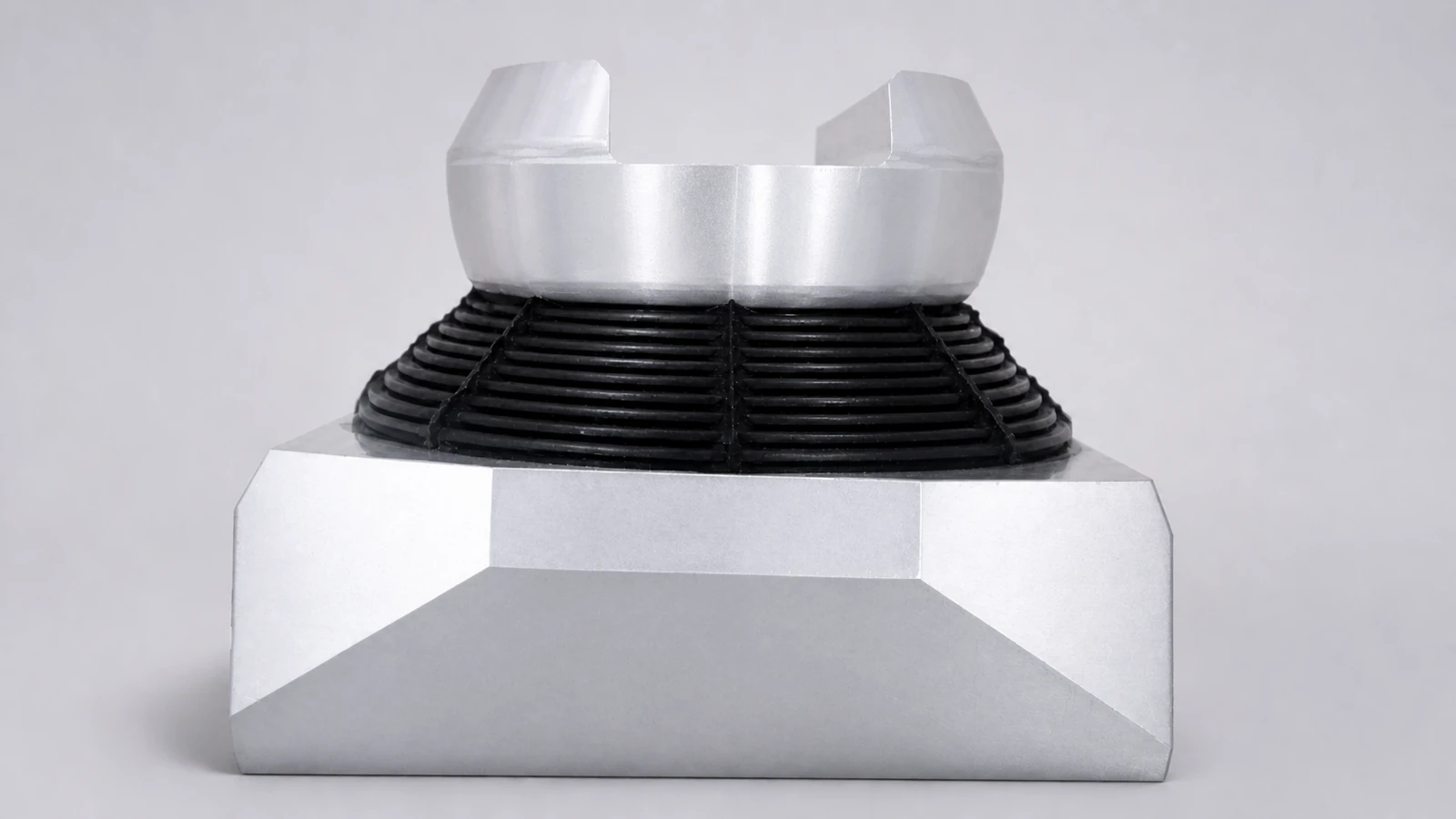

The development sample shown here has an upper fork-style metal connector, a central laminated elastomer stack and a lower mounting base. Exact motion directions, load paths, materials and acceptance limits remain project-specific.
Related engineering information: aerospace elastomer elements and the PRESIS engineering case index.
Requirement and DFM review
Start with load paths and allowable motion, not with the mold.
The engineering input must connect assembly geometry with axial, radial and angular motion, static and dynamic stiffness, environment, life target, inspection method and the customer's system-level validation plan.
Functional input
- Drawing, sample, assembly interface and motion direction.
- Load spectrum, allowable displacement or angle, and stiffness targets.
- Temperature, media, storage and service-life conditions.
Structure review
- Metal connector geometry and machinability.
- Shim profile, thickness consistency and stack sequence.
- Elastomer layer distribution, bonding area and flash-control strategy.
Validation agreement
- Inspection characteristics, measurement references and gauge capability.
- Non-destructive release tests versus qualification or destructive tests.
- Sampling, customer witness points, record format and change approval.
Structure and material decisions
Motion, stiffness and environment are developed as one system.
Motion and load inputs
Axial, radial and angular requirements are translated into the project load path. Rotor-system terms such as flap, drag and pitch are applied only when they are defined by the customer's approved interface and test conditions.
Laminated stiffness design
Layer count, layer thickness, shim geometry and material properties are evaluated together. The target is a manufacturable stack whose directional stiffness can be measured by the agreed fixture and method.
Material and environment screening
Elastomer, metal, surface preparation and bonding systems are screened against temperature, media, fatigue, corrosion and storage inputs. Only the approved project BOM and specifications are released to production.
Development route
Eight controlled stages connect the design intent to a traceable sample.
Technical baseline
Freeze the approved drawing revision, requirement matrix, special characteristics, validation plan and change route before manufacturing.
Material and BOM control
Define each metal part, shim, elastomer and process material by controlled specification, batch status and inspection requirement.
Metal component preparation
Machine or cut the components, verify material evidence, inspect dimensions and weight, and keep the individual identification linked to the batch.
Bonding interface preparation
Control roughening or blasting, cleaning, activation, primer application, drying window and handling protection through approved process instructions.
Insert loading and transfer molding
Use a controlled loading sequence, positioning tooling and cavity record so every shim and metal insert remains in the intended stack.
Primary and post cure
Record the approved recipe reference, equipment, time, temperature, pressure or clamping condition, and independent cavity result without exposing the restricted recipe publicly.
Finishing and marking
Inspect bonding and appearance, remove permitted flash, finish interfaces to the drawing and apply a unique product identifier.
Inspection and performance verification
Complete dimensional, weight and approved stiffness or motion tests, resolve abnormalities, and assemble the serial-numbered delivery dossier.
Manufacturing controls
The critical point is the connection between every layer and every record.
Metal and shim consistency
Metal parts are accepted against the approved drawing and material evidence. Shims are checked individually for profile, thickness, weight and surface condition, then matched by the approved stacking rule.
Bonding and molding discipline
Prepared surfaces are protected from recontamination. Operators record the work-instruction revision, material batches, tooling, cavity, loading check, equipment and process result at each controlled operation.
Abnormal isolation
Any missing record, expired material, out-of-limit measurement or process deviation stops the route. The affected material and products remain physically identified until authorized disposition.
Inspection and test strategy
Separate production release from qualification evidence.
Production inspection confirms that the part and its records conform to the approved manufacturing baseline. Fatigue, environmental and destructive verification use dedicated samples and an approved plan; they are not silently substituted for routine delivery inspection.
Routine manufacturing evidence
- Identity, appearance, dimensions, weight and interface condition.
- Material and process batch linkage, gauge identification and calibration validity.
- Approved non-destructive stiffness or motion test with raw data retained.
- Packaging, release signature and delivery-dossier completeness.
Project qualification evidence
- Static and dynamic characteristics under the agreed fixture and method.
- Fatigue, durability, temperature or environmental tests on designated specimens.
- System-level boundary conditions confirmed by the customer or an approved test organization.
- Acceptance limits and conclusions controlled by the signed technical baseline.
Piece-level traceability
One serial number links the product to its complete manufacturing history.
Incoming materials
Metal-part identity, material certificate, shim inspection, elastomer batch and shelf-life status.
Process execution
Surface treatment, primer or process-material batch, loading confirmation, mold, cavity, equipment and operator.
Inspection and testing
Gauge, calibration status, raw measurements, calculation method, result, reviewer and abnormal record.
Release and delivery
Unique marking, final release, protective packaging, dossier index, packing list and customer handover record.
| RFQ input | Why it matters |
|---|---|
| 2D/3D drawing, sample and assembly interface | Defines geometry, datum, stack relationship and manufacturability. |
| Load direction, motion range and stiffness target | Drives the laminated structure, test fixture and data-processing method. |
| Temperature, media, storage and life conditions | Supports elastomer, metal treatment and validation-plan review. |
| Inspection, qualification and documentation requirements | Separates routine release, special tests, witness points and delivery records. |
| Sample quantity, annual demand and schedule | Supports tooling route, cavity planning, control plan and capacity review. |
Frequently asked questions
Key questions before a spherical elastomeric bearing project starts.
What is a helicopter rotor hub spherical elastomeric bearing?
In this development context, it is a laminated metal-elastomer component built from machined metal interfaces, metal shims and controlled elastomer layers. The project-defined structure carries specified loads and permits controlled motion while stiffness, bonding, dimensions and traceability are verified against approved technical documents.
What information is needed to start development?
The starting package should include the approved 2D or 3D drawing or sample, assembly interface, load direction, allowable motion, static and dynamic stiffness targets, environment, life target, inspection method, sample quantity and validation responsibilities.
How are the laminated metal and elastomer layers controlled?
Each metal part and shim is linked to material and inspection evidence. Bonding surfaces, loading sequence, positioning tooling, mold cavity, process record and post-molding inspection are controlled by the approved project baseline.
Which tests are used for production release and qualification?
Routine release uses the approved non-destructive inspections and performance checks for the project. Fatigue, environmental and destructive verification use designated specimens and a separately approved qualification plan.
How is each finished bearing traced?
A unique serial number links the finished part to incoming materials, metal and shim inspection, process-material batches, surface preparation, mold and cavity, equipment, operator, cure records, final inspection, testing, packaging and delivery documents.
RFQ and engineering follow-up
Send the approved project inputs for a focused manufacturability review.
We can review the drawing, metal and elastomer structure, loading direction, stiffness requirements, environment, validation responsibilities, sample quantity and documentation needs under a controlled project boundary.
